Custom 0.3MP GC0308 Sensor Industrial USB Camera Module

Brand Name : Sinoseen

Model Number : SNS-PC998-V1.0

Certification : RoHs

Place of Origin : Shenzhen,China

MOQ : 200

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/6.5 VGA CMOS GC0308

Resolution : 0.3MP (648 x 488)

Dimensions : customizable

Pixel Size : 34.μm x 3.4μm

Focus Type : Fixed focus

Interface : USB2.0

Feature : Low power consumption

Contact Now

Custom 1/6.5 inch low power 0.3MP with gc0308 sensor usb camera module for industrial camera

Low power camera module

This is our newly developed USB camera module with GC0308 sensor. This 0.3 MP USB camera module is versatile and very cheap. The size of this sensor is 1/6.5, the larger the size, the better the luminous flux. It can run at 30fps at 648*488 resolution, which makes its picture very smooth and clear. It features high performance and low power consumption. This USB camera module can be widely used in access control equipment, all-in-one computers, video doorbells, laptops, face recognition and other fields. If you need, we can also customize it for you according to your needs.

Specification
Model No
SNS-PC998-V1.0
Sensor
1/6.5 VGA CMOS GC0308
Pixel
0.3 Mega Pixel
Most effective pixels
648 x 488
Pixel Size
3.4μm x 3.4μm
Compression format
YUY2 ONLY
Resolution & Frame rate
640x480@30fps;
352x288@30fps;
320x240@30fps;
176x144@30fps;
160x120@30fps;
Shutter Type
Electronic rolling shutter
Focus type
Fixed focus
S/N ratio
TdB
Dynamic range
TdB
Sensitivity
3300mV/Lux-sec
Interface type
USB2.0
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/Gamma
Audio frequency
Optional
Power supply
USB BUS POWER
Power consumption
DC 5V, 70mW
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control (AEC)
NOT Support
Auto White Balance (AEB)
NOT Support
Auto Gain Control (AGC)
NOT Support
Storage temperature
-10~60
Operating temperature
-30~80
USB cable length
Default
Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Custom 0.3MP GC0308 Sensor Industrial USB Camera ModuleCustom 0.3MP GC0308 Sensor Industrial USB Camera Module

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Camera Module Application Areas

Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions


Product Tags:

GC0308 Sensor Industrial USB Camera Module



Custom 0.3MP USB Camera Module



GC0308 Sensor Industrial Camera Module


Wholesale Custom 0.3MP GC0308 Sensor Industrial USB Camera Module from china suppliers

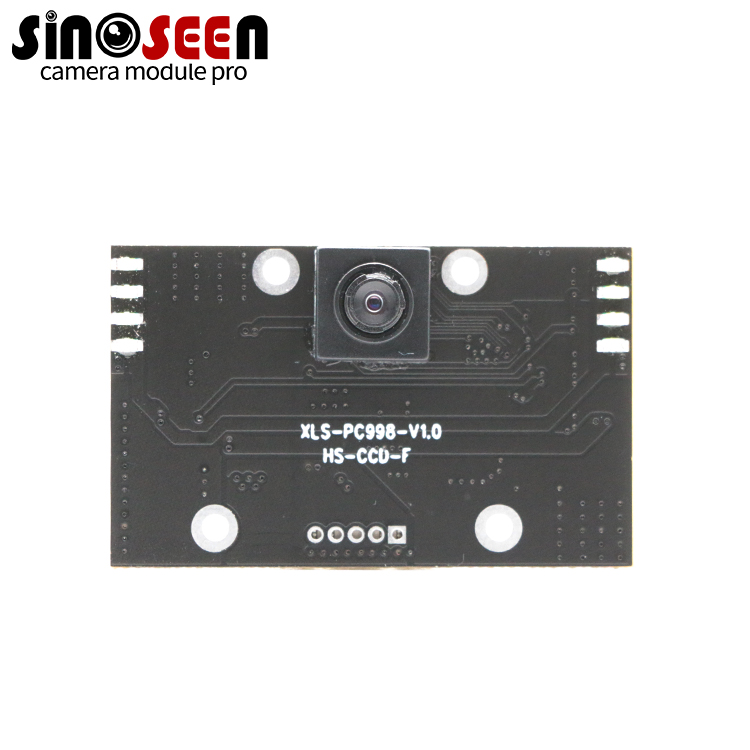

Custom 0.3MP GC0308 Sensor Industrial USB Camera Module Images
