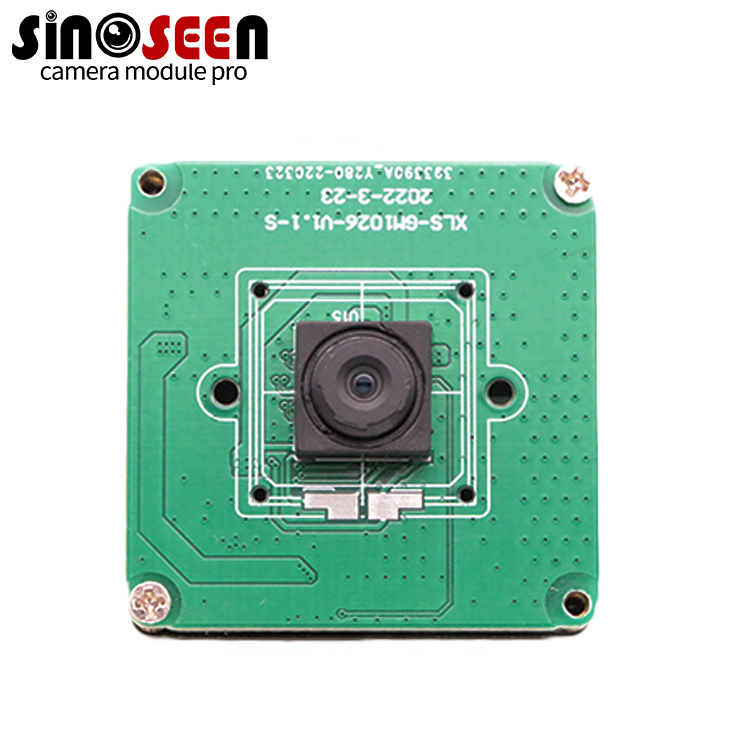

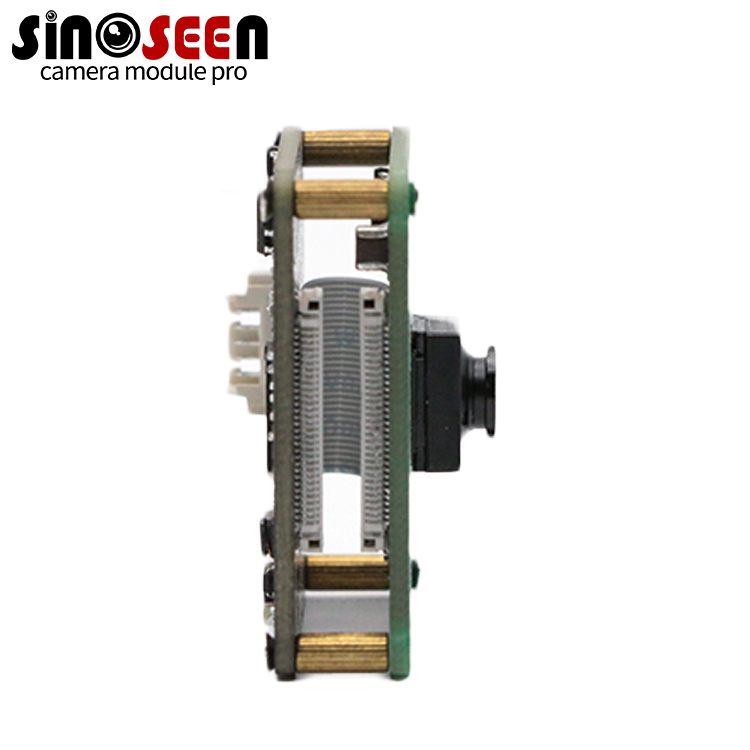

HDR 20MP OEM Large Area IMX230 USB Camera Module For High Speed Scanners

Name: HDR 20MP OEM Large Area IMX230 USB Camera Module For High Speed Scanners
Brand: Sinoseen
Price: 1 USD

Wholesale HDR 20MP OEM Large Area IMX230 USB Camera Module For High Speed Scanners from china suppliers

Brand Name : Sinoseen

Model Number : SNS-GM1026-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 20MP camera module

Sensor : IMX230

Dimensions : (customizable)

Focus Type : Fixed focus/ Auto Focus

Interface : USB2.0

Feature : HDR

Contact Now

HDR 4K 20MP OEM Large Area IMX230 Auto Focus USB Camera Module for High Speed Scanners

IMX230 USB Camera Module

This is our company's new Exmor RS product - a camera module with IMX230 sensor. Unlike other products, this mod has greatly increased the pixel value, from the usual 13 million to 21 million. In addition, the size of the CMOS has also increased from 1/3 inch to 1/2.4 inch, which is close to the card machine level. make the image quality better. Of course, the most important thing is that it supports phase detection AF technology. The module supports up to 192 AF points. Even when shooting high-speed moving objects, it is not easy to appear the common smear phenomenon in the past. In addition, this module supports video HDR recording, but the resolution is increased to level 4 (4096*2160). Maybe you usually use HDR mode for more stills. In fact, HDR video recording also plays a very powerful role in video shooting. Like stills, it can also adjust light and dark contrast in high-contrast environments. Show more details. It can be used for high-speed scanners, high-definition recognition, education booths, passport ID card recognition, etc.

Specification

Sensor Type	Sony IMX230
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Power supply	USB BUS POWER
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
Dimensions	Customizable
