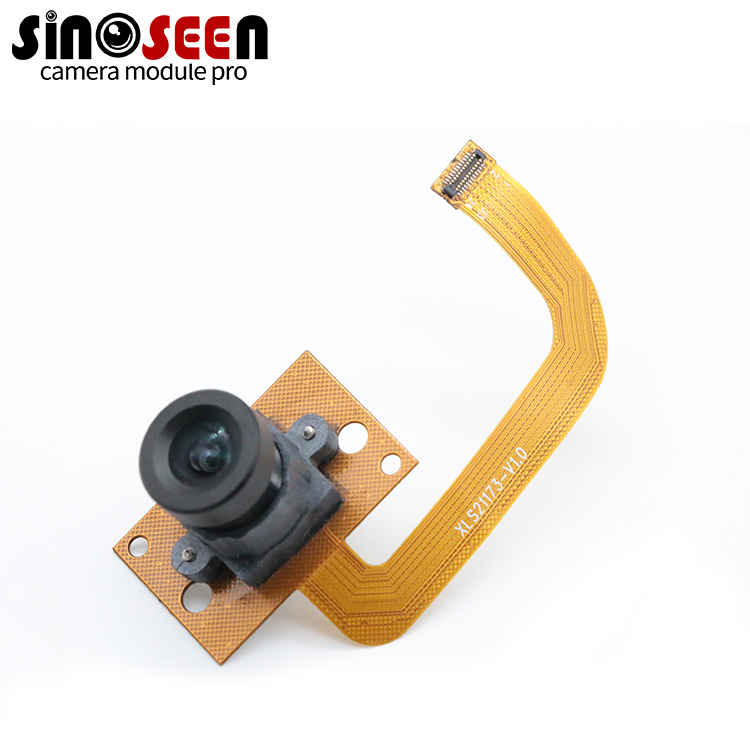

GC2053 Sensor 1080P 30FPS Fixed Focus 2MP MIPI Camera Module

Name: GC2053 Sensor 1080P 30FPS Fixed Focus 2MP MIPI Camera Module
Brand: Sinoseen
Price: 1 USD

Wholesale GC2053 Sensor 1080P 30FPS Fixed Focus 2MP MIPI Camera Module from china suppliers

Brand Name : Sinoseen

Model Number : SNS-2MP-GC2053-KOP

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 2MP camera module

Sensor : 1/2.9'' GC2053

Resolution : 1920(H) x 1080(V)

Dimensions : (customizable)

Lens FOV : 100°(optional)

Focus Type : Fixed Focus

Interface : MIPI

Feature : Low power consumption

Contact Now

1080p 30fps Fixed Focus 2MP MIPI camera module with GC2053 sensor

Hot Sale 2MP MIPI Camera Module 1080p 30fps Fixed Focus With GC2053 Sensor

Features:

Size: 1/2.9

Maximum resolution: 1920*1080

Features:

1. Features of high performance and low power consumption

2. It can run at 30FPS per second

Applications: Face recognition, security cameras, automobiles, mobile phones, cameras, digital video cameras, digital cameras and camcorders, video phones and conference equipment, etc.

Specification:2MP MIPI Camera Module

  	 			Parameter 			Typical value
 			Optical Format 			1/2.9inch
 			Active pixel array 			1920*1080
 			Pixel Size 			2.8um*2.8um
 			Shutter type 			Electonic rolling shutter
 			ADC resolution 			10 bit ADC
 			Max Frame rate 			30fps@full size
 			Power Supply 			AVDD28:2.8V
 			DVDD:1.2V
 			IOVDD:1.8V
 			Power Consumption 			TBD
 			SNR 			TBD
 			Dark Current 			TBD
 			Sensitivity 			TBD
 			Dynamic range 			TBD
 			Operating temperature: 			-20°C to 80°C
 			Stable Image temperature 			0°C to 60°C
 			Optimal Lens chief ray angle(CRA) 			12(linear)
 			Package type 			CSP
 			Input clock frequency 			6-27MHz



GC2053 Sensor 1080P 30FPS Fixed Focus 2MP MIPI Camera Module
