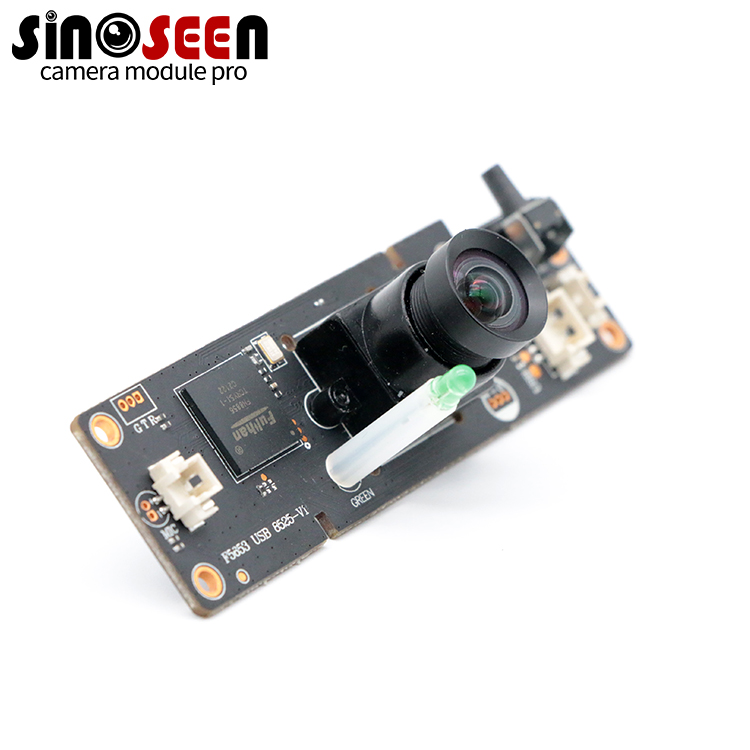

SONY IMX317 30FPS 4K 8MP USB Camera Module Support Optical Zoom

Name: SONY IMX317 30FPS 4K 8MP USB Camera Module Support Optical Zoom
Brand: Sinoseen
Price: 1 USD

Wholesale SONY IMX317 30FPS 4K 8MP USB Camera Module Support Optical Zoom from china suppliers

Brand Name : Sinoseen

Model Number : SNS-OV-INX317-TY

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 8mp camera module

Sensor : 1/2.5'' SONY IMX317 CMOS

Resolution : 8MP 3840(H) x 2160(V)

Dimensions : (customizable)

Lens FOV : 90°(optional)

Focus Type : Fixed Focus

Interface : USB2.0

Feature : 4K

Contact Now

HD 8mp Usb Camera Module Support Optical Zoom 30fps 4k With SONY IMX317

OEW HD 8mp Usb Camera Module 4k Support Optical Zoom 30fps With SONY IMX317

4K 8MP USB Camera Module

Features

1, With high-definition and high-dynamic functions, can have a good quality output

2, 4K pixels

3, The maximum resolution is 3840 (H) × 2160 (V)

4, Support optical zoom

5, Support operating system WinXP/Vista/Win7/Win8/Win10 Linux with UVC (linux-2.6.26 and above MAC-OS X 10.4.8 or later Android 4.0 or later with UVC

6, Used in high-definition photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields

Specification

Model No	SNS-OV-INX317-TY
Sensor	1/2.5’’ SONY IMX317 CMOS
Pixel	8 Mega Pixel
Most effective pixels	3840(H) x 2160(V)
Pixel Size	1.62µm x 1.62µm
Image area	3864um (H) x 2196um (V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
Chroma	Color, RGB
Clock Frequency	6 to 72 MHz
Microphones	Built-in
Interface type	Micro USB
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens construction: 5E+IR
	D FOV: 100 degree
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Operating Voltage	DC 5V
Operating Current	260mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
