OEM Customizable Medical Endoscope USB Camera Module Vision Solution

Brand Name : Sinoseen

Model Number : SNS-1MP-OV9734-S2

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/9" Omnivision OV9734

Resolution : 1MP 1280(H) x 720(V)

Dimensions : Customizable

Lens FOV : 60°(optional)

Focus Type : Fixed focus

Interface : USB2.0

Feature : Endoscope camera module

Contact Now

Medical Endoscope OEM Camera Modules Vision Solution OV9734 Sensor

OEM Customizable Medical Endoscope USB Camera Module Vision Solution

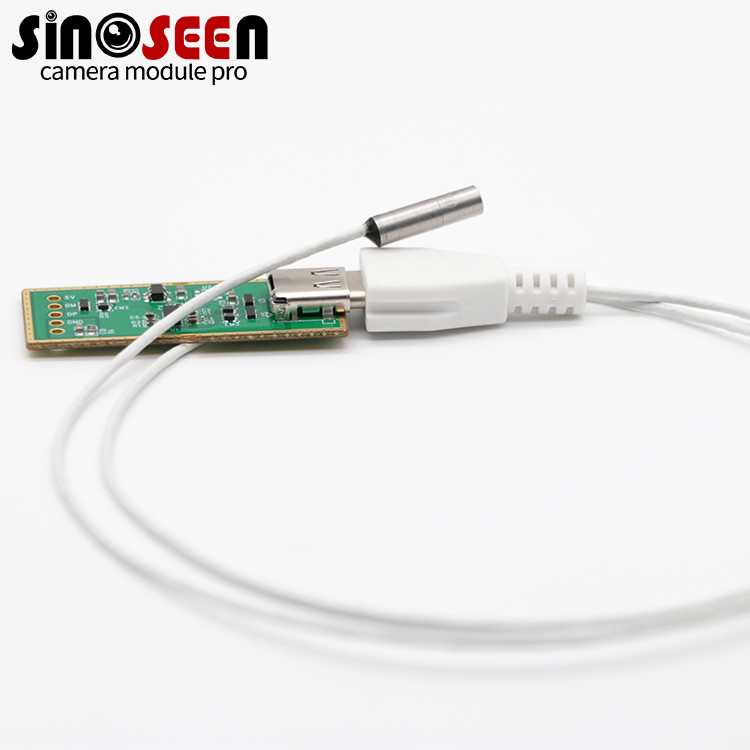

Endoscope OEM Camera Module

This is a camera module specially designed for medical endoscopy applications. It's a USB camera module, which means it can be connected directly to a computer or other device with a USB port.

This camera module can be customized to meet the specific needs of medical endoscopy applications. It features high-quality optics and image sensors that deliver high-resolution images and video. The camera module can be integrated with various endoscopes and can be customized according to the specific requirements of the endoscope.

A USB interface allows easy connection to computers and other devices, and the camera module can be controlled using the software provided with the module. This allows for easy capture and analysis of images and videos.

Specification
Module No SNS-1MP-OV9734-S2
Pixel Size 1.4μm x 1.4μm
Effective Pixels 1MP 1280(H) x 720(V)
Video output Raw Bayer10bit/8bit
Active Array Size Video Rate 30FPS
Image Sensor 1/9"
Sensor Type Omnivision OV9734
Lens view FOV60°(optional),F/N(optional)
TV Distortion <1%
AEC Support
AEB Support
AGC Support
Operating voltage AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature -20～70℃
Storage temperature 0～50℃
Dimensions Customizable
