OEM 8MP 4K FHD USB Camera Module IMX415 Sensor 3X 5X Optical Zoom

Product Categories
Shenzhen Sinoseen Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

OEM 8MP 4K FHD USB Camera Module IMX415 Sensor 3X 5X Optical Zoom

Brand Name : Sinoseen

Model Number : SNS-GM1006-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 8mp camera module

Sensor : 1/2.8'' SONY IMX415 CMOS

Resolution : 8MP 3864(H) x 2192(V)

Dimensions : (customizable)

Pixel Size : 1.45µm x 1.45µm

Focus Type : Fixed Focus

Interface : USB2.0

Feature : HDR

Contact Now

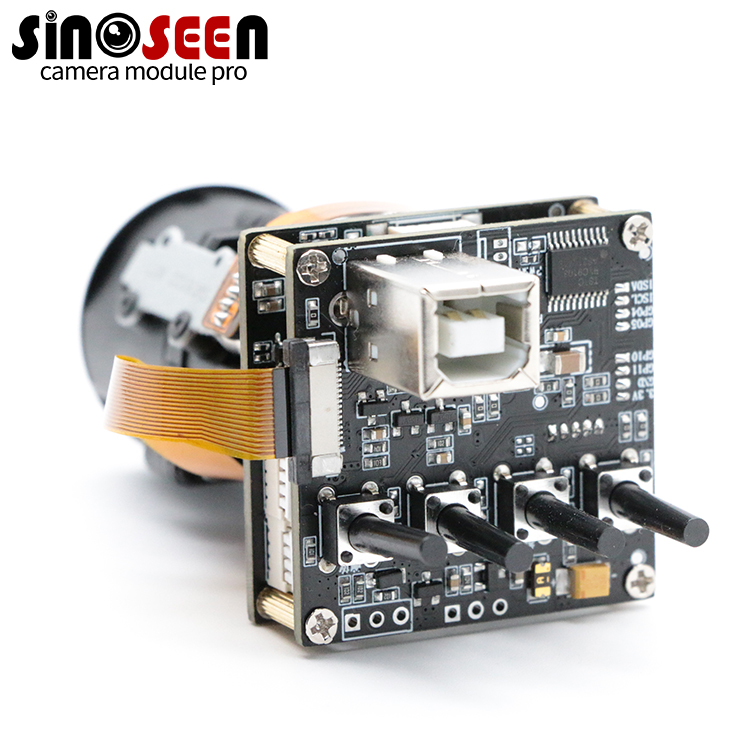

OEM 8MP 4K FHD USB Camera Module IMX415 Sensor 3X 5X Optical Zoom

camera module optical zoom

This is an 8MP USB camera module with IMX415 sensor and 3X/5X optical zoom is a high quality camera module designed for a variety of applications including video conferencing, security systems and industrial automation.
4K resolution and advanced image processing capabilities. Enables this camera module to capture high quality images and video OS with low noise and excellent color reproduction.
The camera module also features 3x or 5x optical zoom, allowing the user to adjust the focus of the lens and zoom in on a specific area of interest. This feature is especially useful in applications that require close-up observation, such as surveillance systems or medical imaging.
In addition, the camera module supports USB connectivity for easy integration into various systems and devices. With its compact size and high-quality imaging capabilities, it is an excellent choice for a wide range of applications.

Specification
Model No SNS-GM1006-V1.0
Sensor 1/2.8’’ SONY IMX415 CMOS
Pixel 8 Mega Pixel
Most effective pixels 3840(H) x 2160(V)
Pixel Size 1.45µm x 1.45µm
Image area 3864(H) x 2192(V)
Compression format MJPEG / YUV2 (YUYV)
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Chroma Color, RGB
Clock Frequency 6 to 72 MHz
Microphones Built-in
Interface type USB2.0
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens Focal length: 3.6mm
Lens construction: 5E+IR
D FOV: 100 degree
Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Operating Voltage DC 5V
Operating Current 260mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension Customizable
Storage temperature -40˚C to 85 ˚C
Operating temperature -30˚C to 85 ˚C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

OEM 8MP 4K FHD USB Camera Module IMX415 Sensor 3X 5X Optical ZoomOEM 8MP 4K FHD USB Camera Module IMX415 Sensor 3X 5X Optical Zoom

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Camera Module Application Areas

Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
